Detecting Speed Max. ： | 600Pcs/min |
| Encode-detecting Max.： | 360M/min |
| Marking accuracy： | ±0.1m |
| Label width： | 20-180mm |
| Label inner Diameter： | φ76mm |
| Label outer Diameter： | Max. φ400mm |
| Function： | High-speed detection and coding of roll labels |
| Machine Size： | 1500*800*1500（mm） |
| Power： | 220V 50-60Hz 1KW |
| Weight： | 100Kg |
The above parameters are for reference only. The actual situation should be based on the physical object.

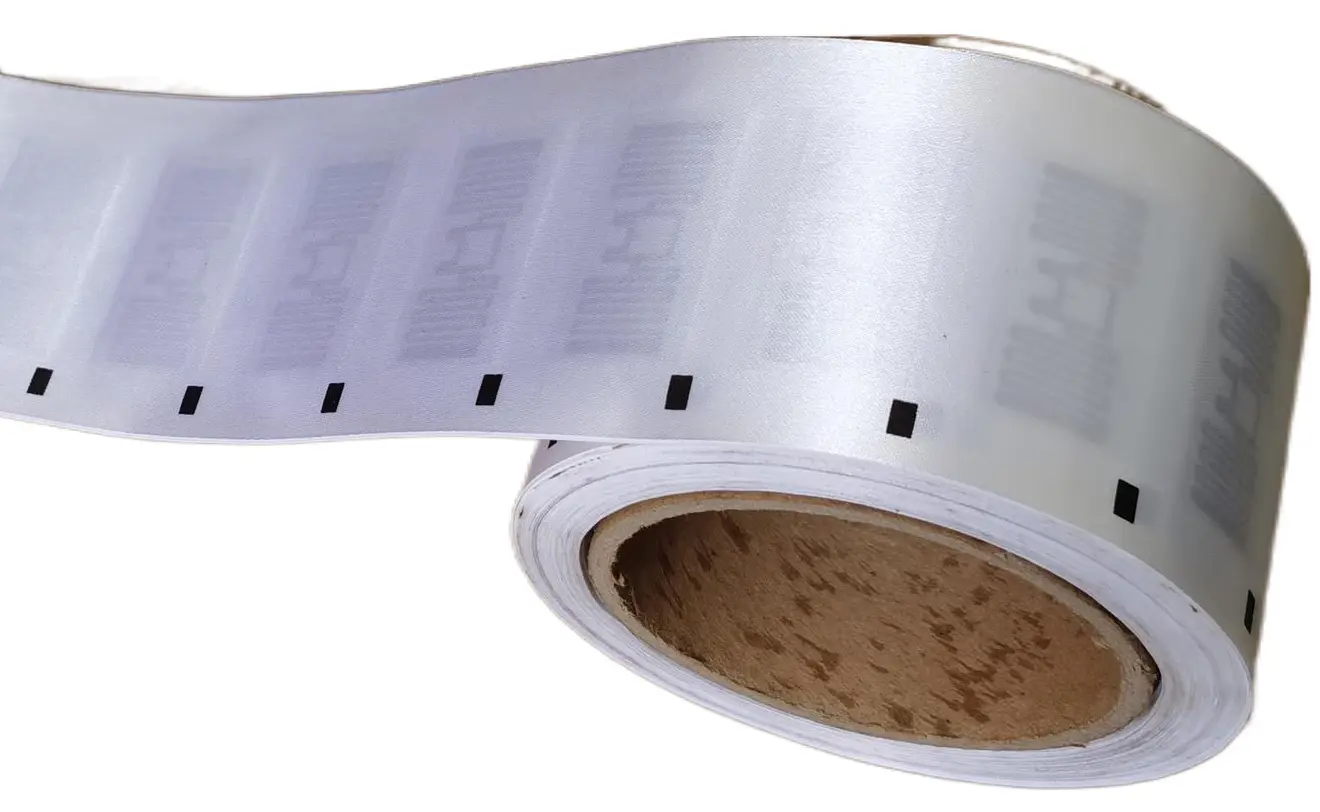

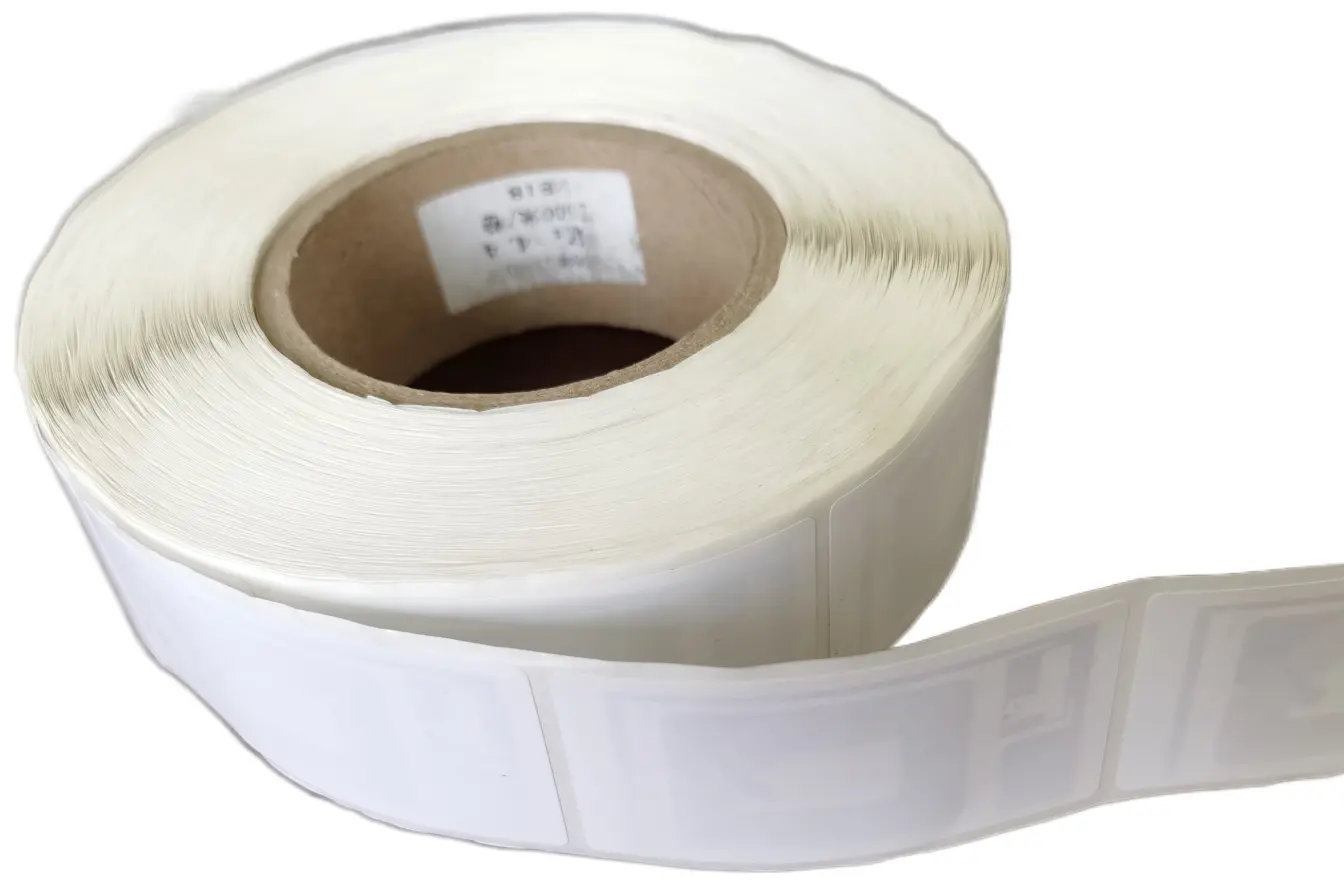

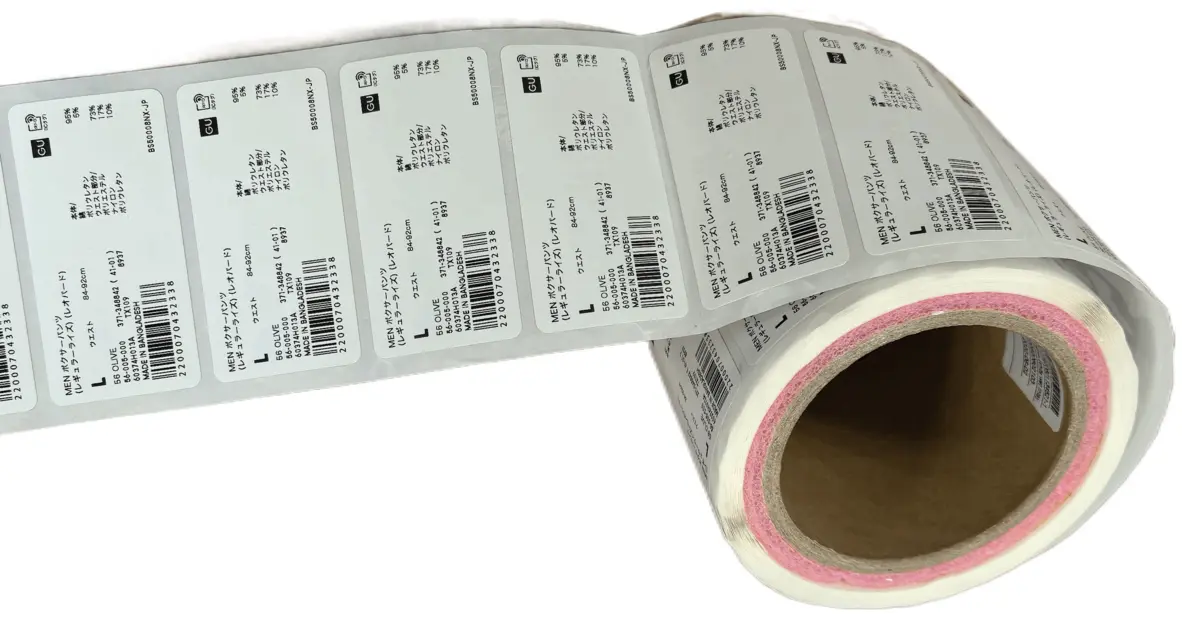

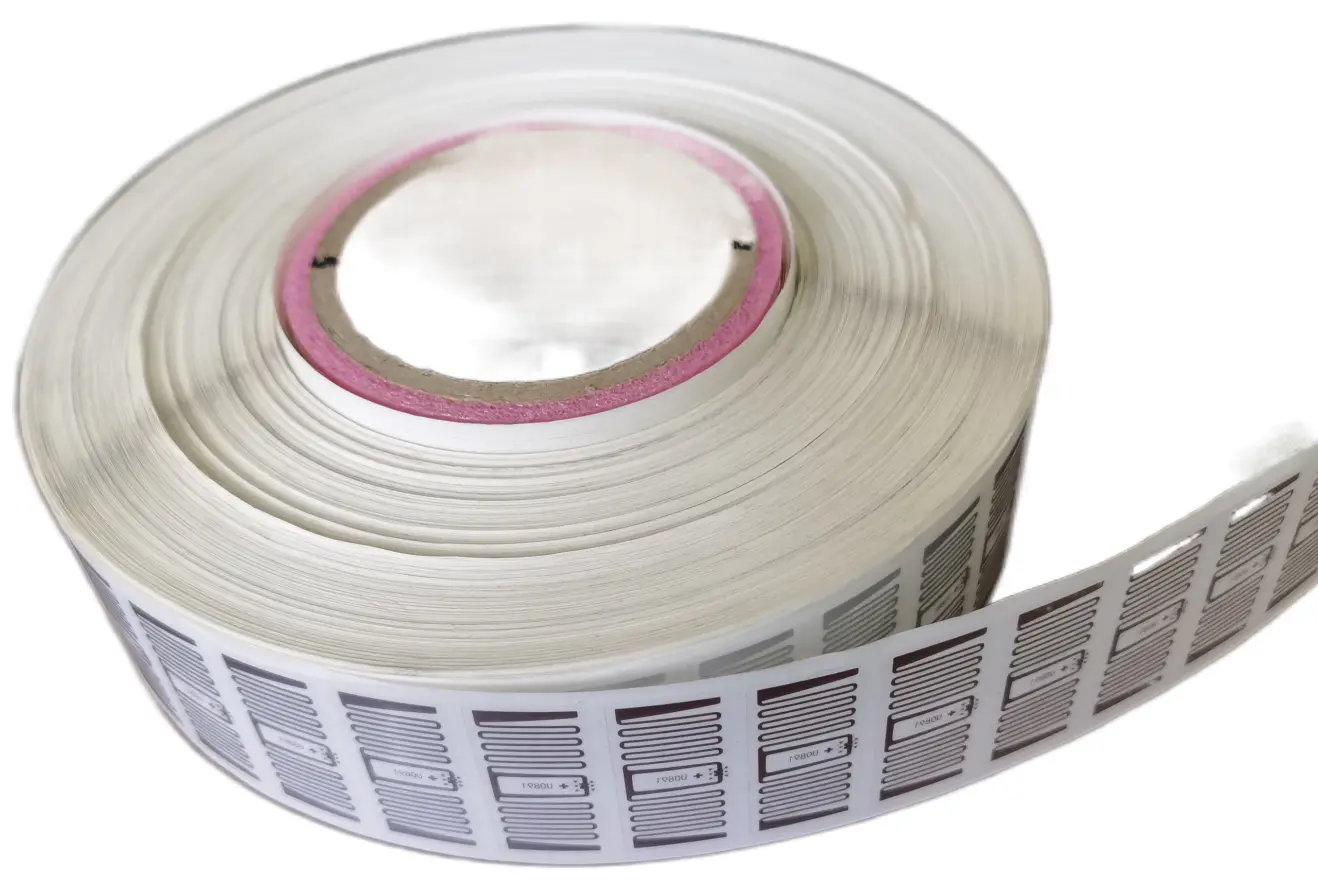

－This equipment is suitable for the detection and encoding of roll-packed RFID tags.
－Optional dual-station RFID coding and reading detection configuration is available, ensuring the accuracy of the data.
－Optional barcode scanner function is available, enabling consistency in barcode printing and EPC data.
－You can choose to install a barcode printing device, which enables the complete process of printing, scanning barcodes, writing codes, and verification in one go.
