| Production Speed： | Max. 60M/min |
| Laminate accuracy： | ±0.3mm |
| Label Max. Width： | 200mm |
| Label inner Diameter： | φ76mm |
| Label outer Diameter： | Max. φ600mm |

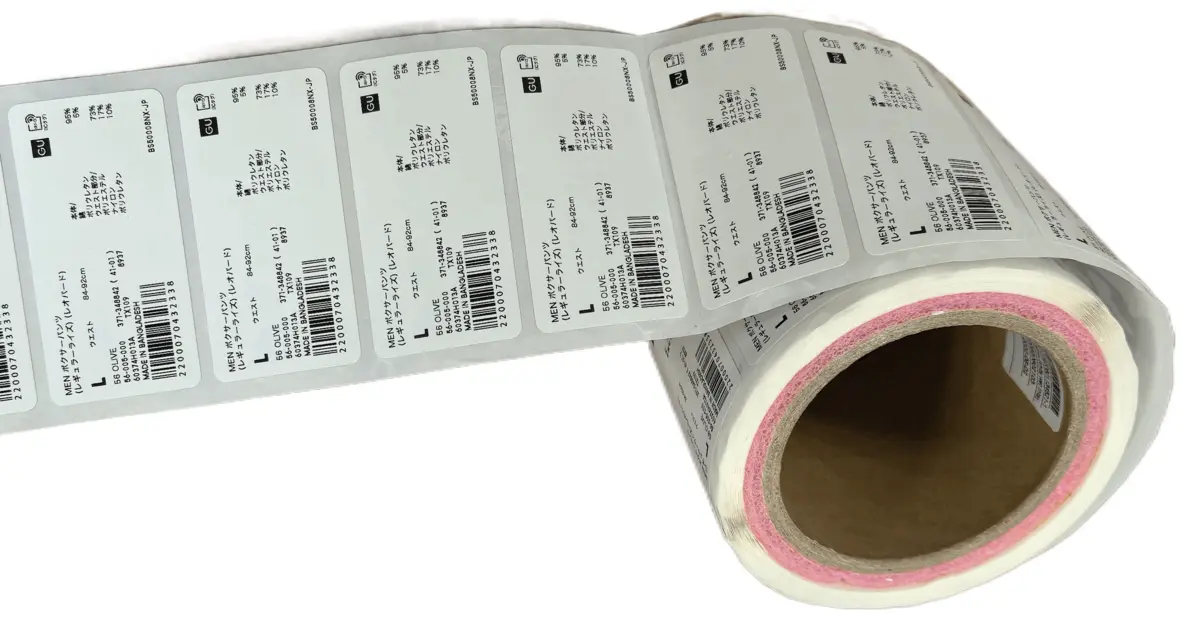

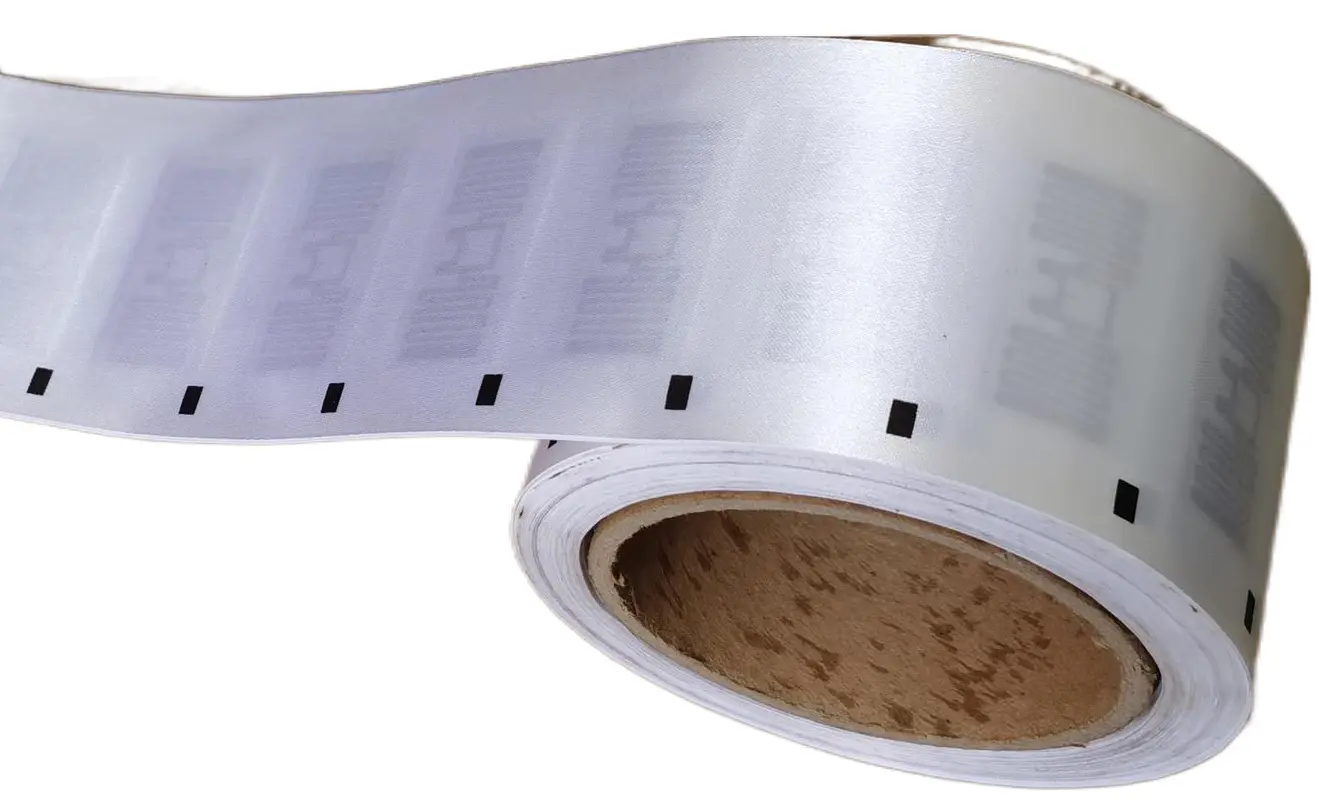

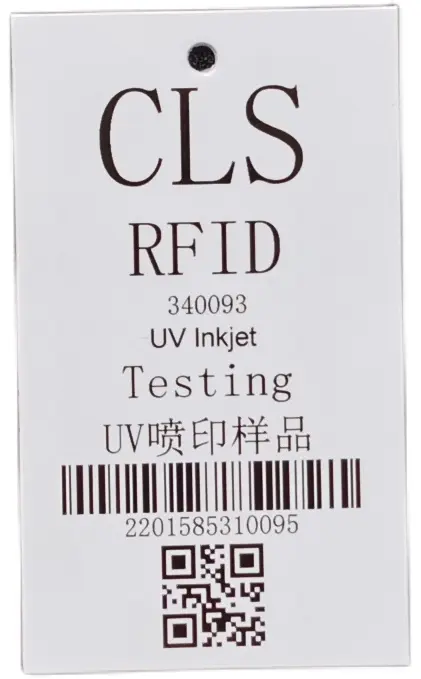

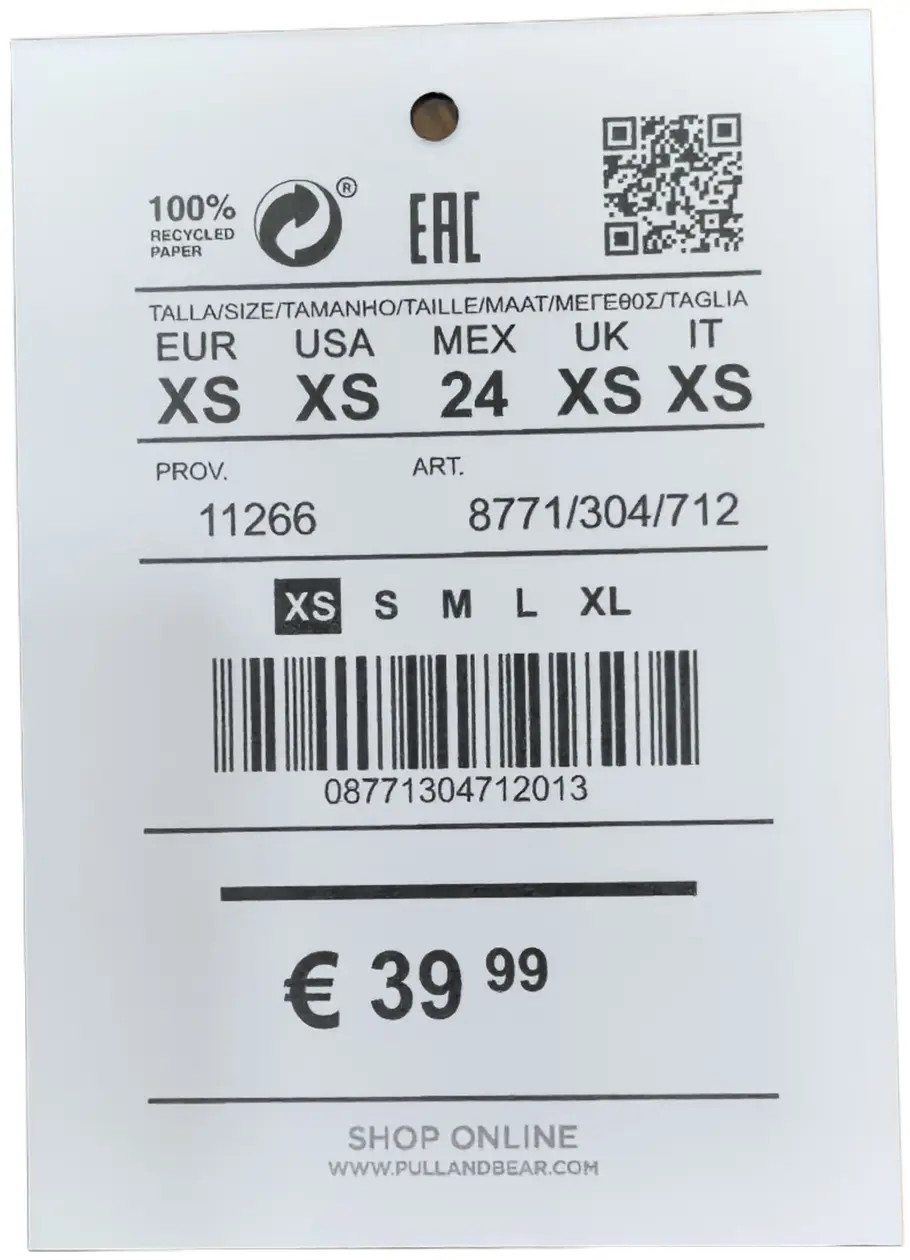

| Function： | produce RFID Label,Hand Tag,Satin and others by dry Inay or wet Inlay |
| Machine Size： | 5410*1600*1900（mm） |
| Power： | 3 phase 380V 50-60Hz 12KW |
| Weight： | 3600Kg |
The above parameters are for reference only. The exact details should be confirmed with the actual product.

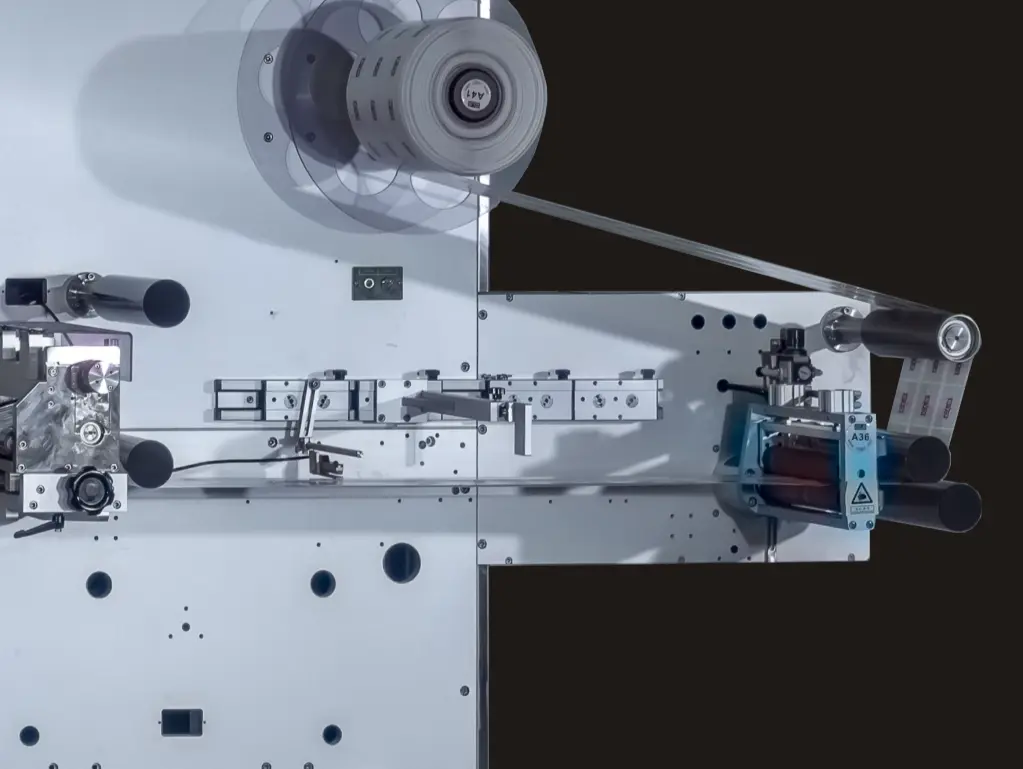

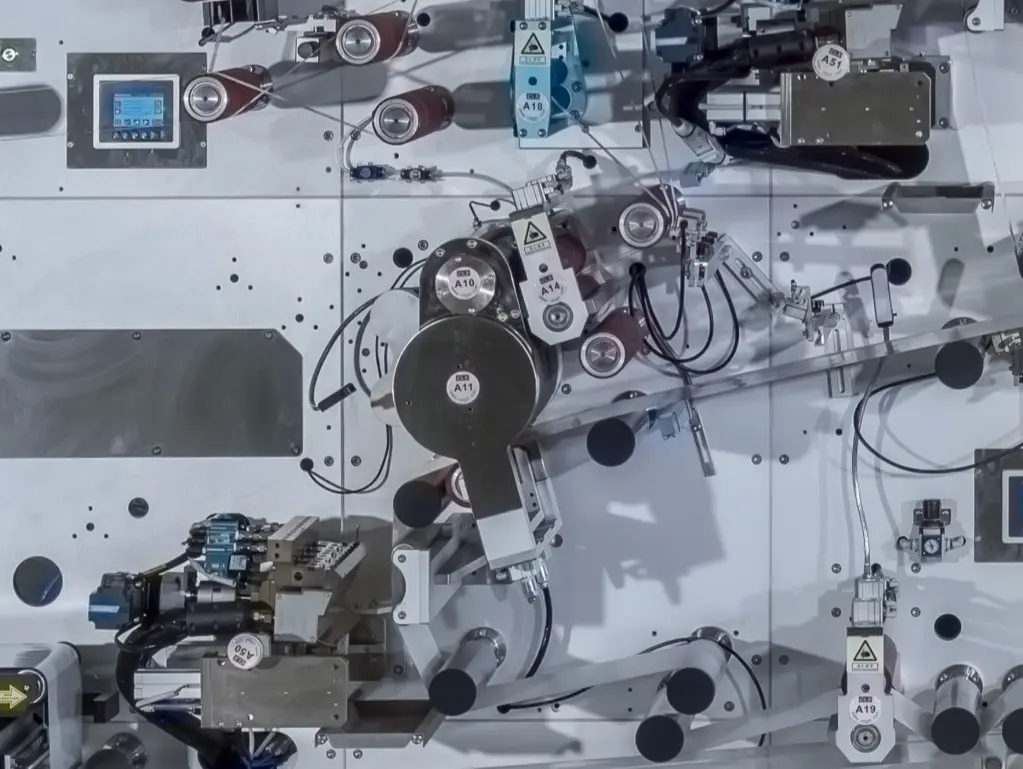

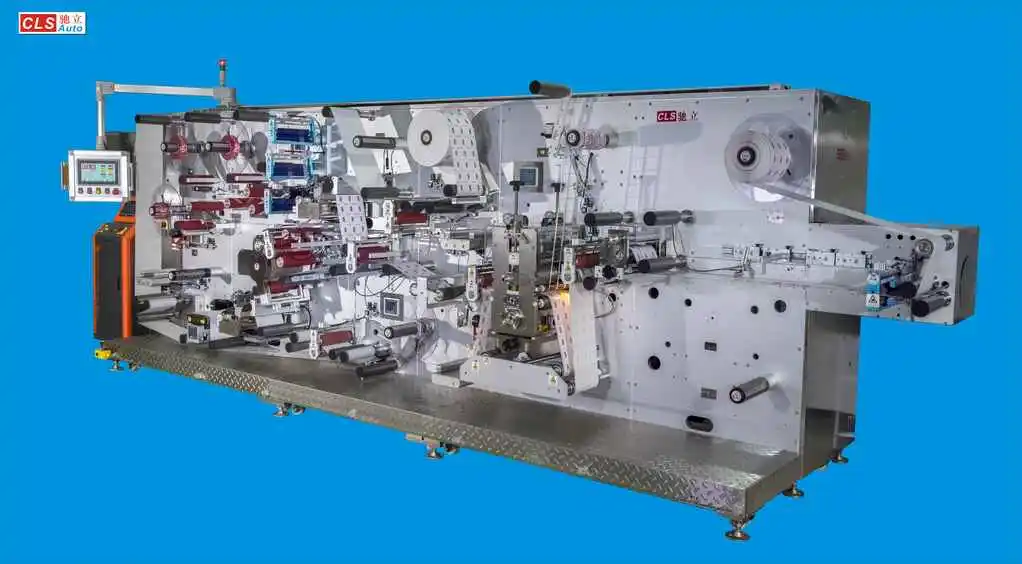

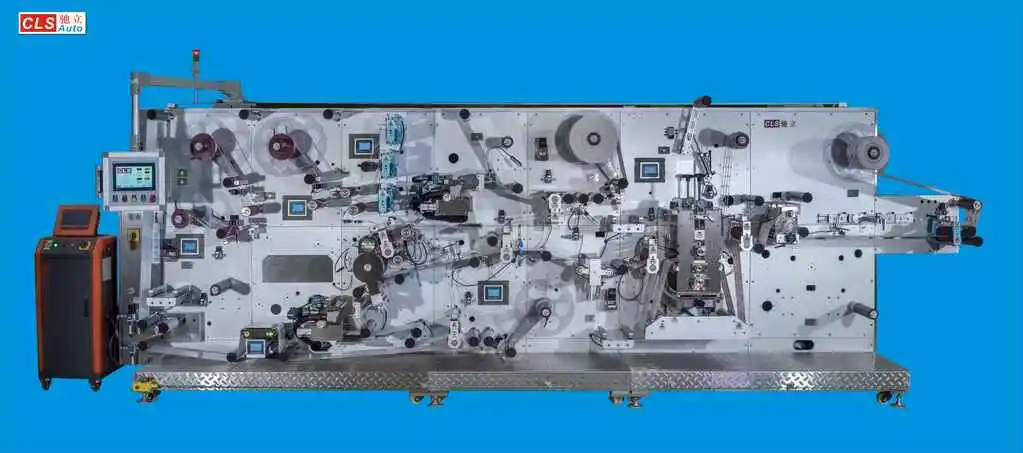

－CL-822 RFID electronic tag automatic laminating equipment, which integrates RFID chip lamination and RFID substrate tag lamination (including pre-cut tags and continuous tags lamination)；
－The automatic compounding speed is 60 meters per minute.

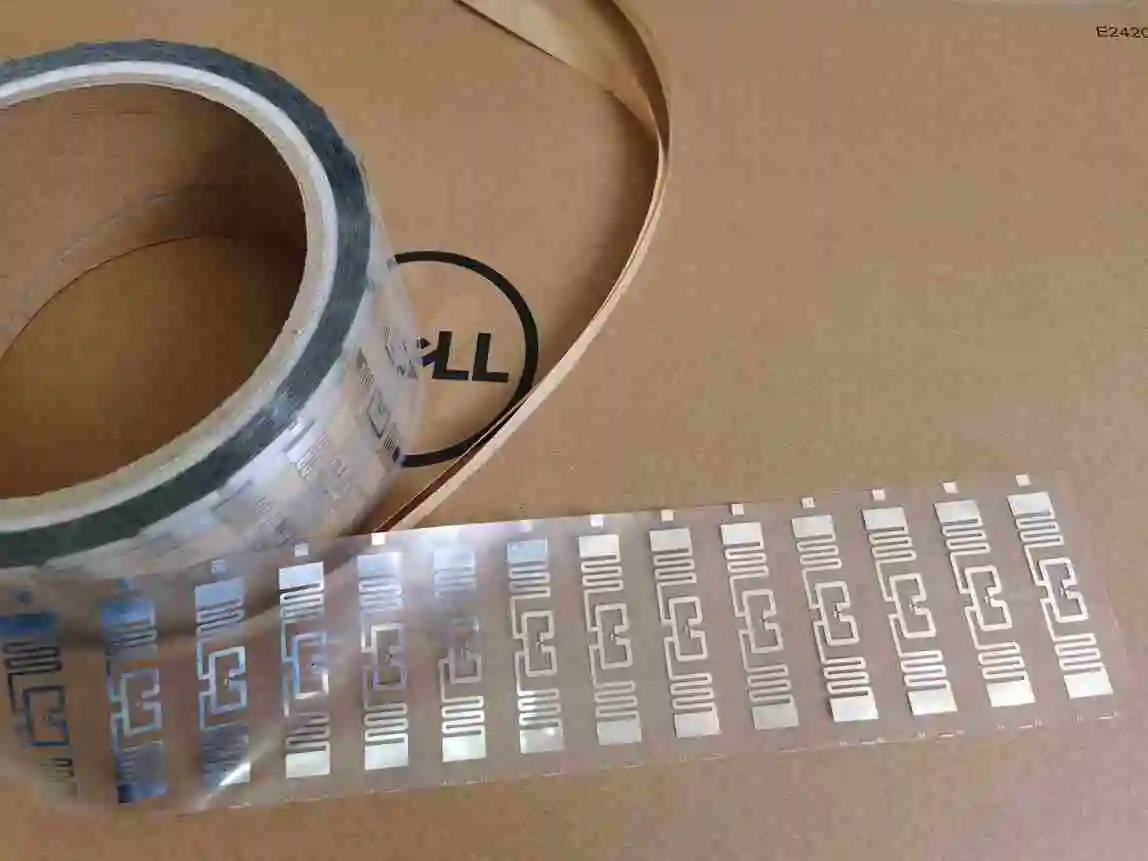

－Combined with the company's dedicated die-cutting unit for dry Inlays and the hot glue coating system, it is possible to achieve rapid production of both RFID dry Inlays and wet Inlays.

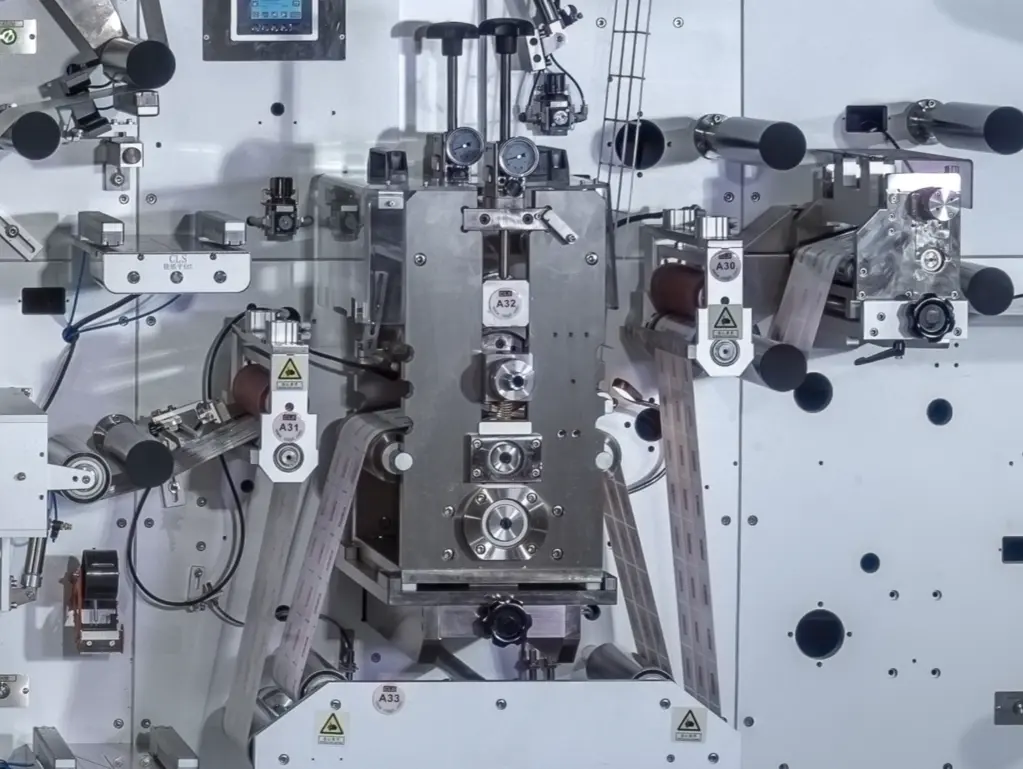

－At the same time, you can also choose to equip our company's high-speed magnetic roller die-cutting mechanism, which can directly carry out the die-cutting process for the labels and produce cards.
－You can also choose to equip our company's RFID tags for detection and marking of invalid ones, enabling the automatic detection process of the tags.
