Detecting Speed： | Max. 600Pcs/min |
| Encodeing Speed： | Max. 360M/min |
| Laminate accuracy： | ±0.5m |
| Label Width： | 20-180mm |
| Label inner Diameter： | φ76mm |
| Label outer Diameter： | Max. φ400mm |
| Function： | Roll Label high speed detectio&encoding |
| Machine Size： | 2464*800*1500（mm） |
| Power： | 220V 50-60Hz 1KW |
| Weight： | 256Kg |
The above parameters are for reference only. The actual situation should be confirmed with the physical product.

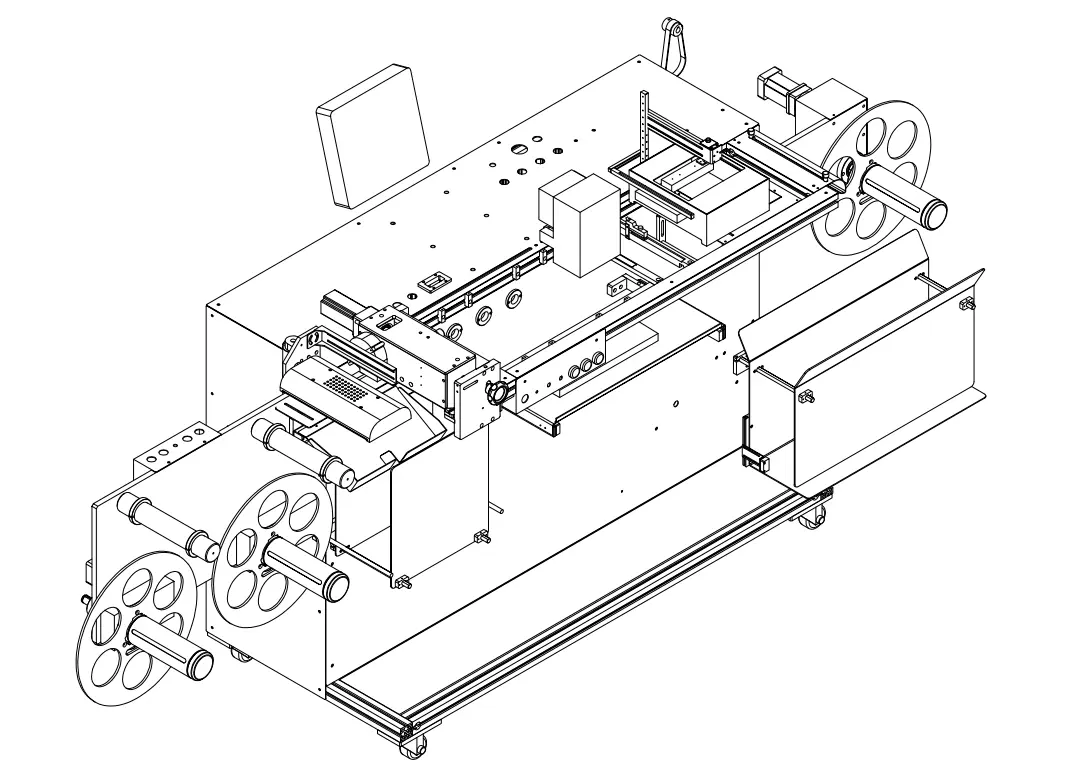

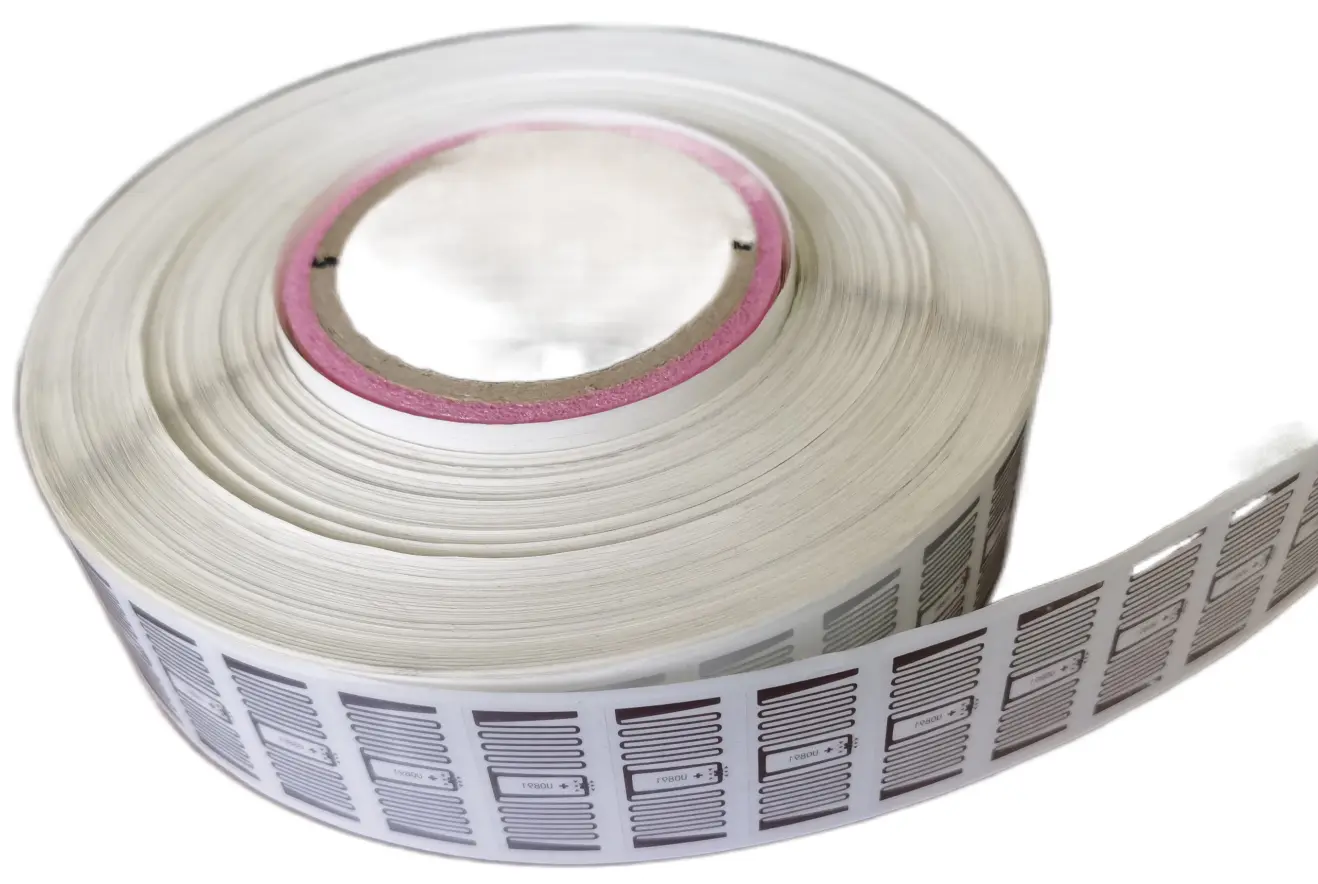

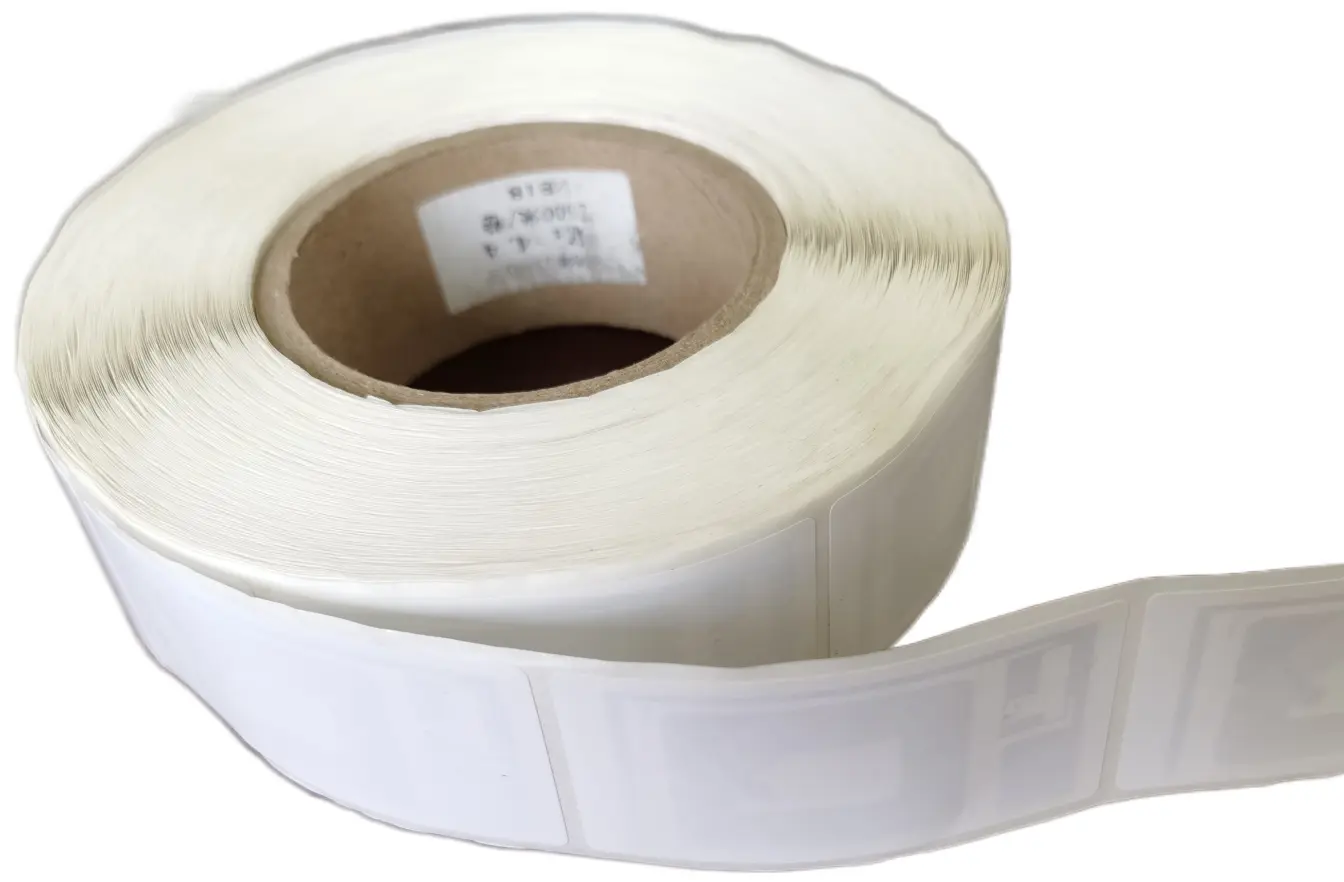

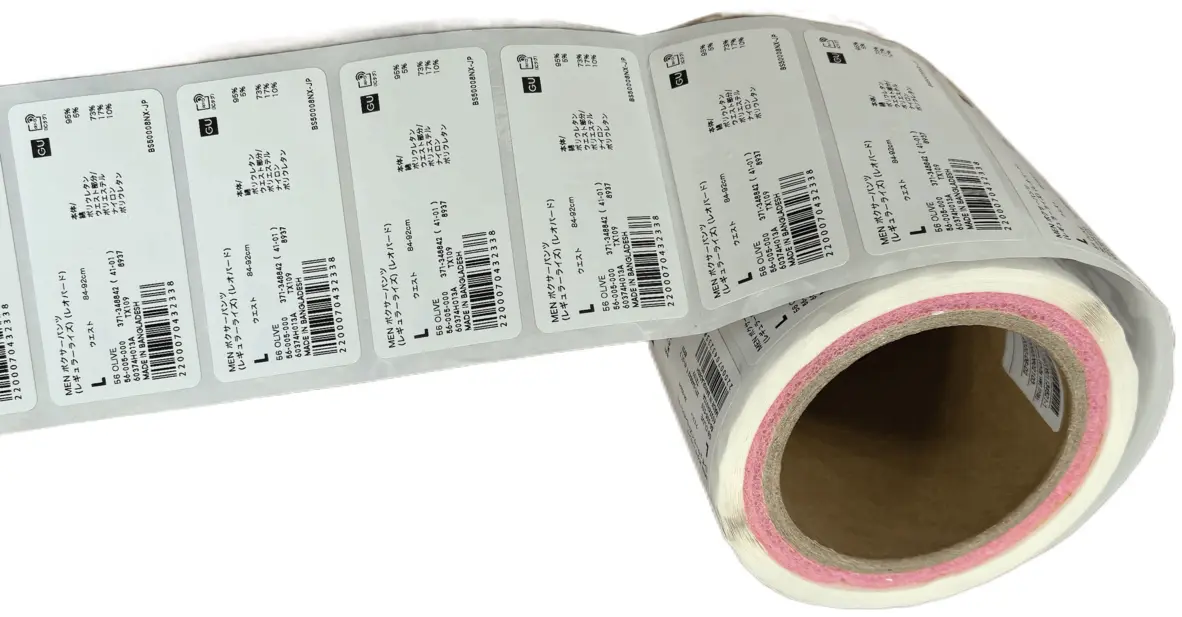

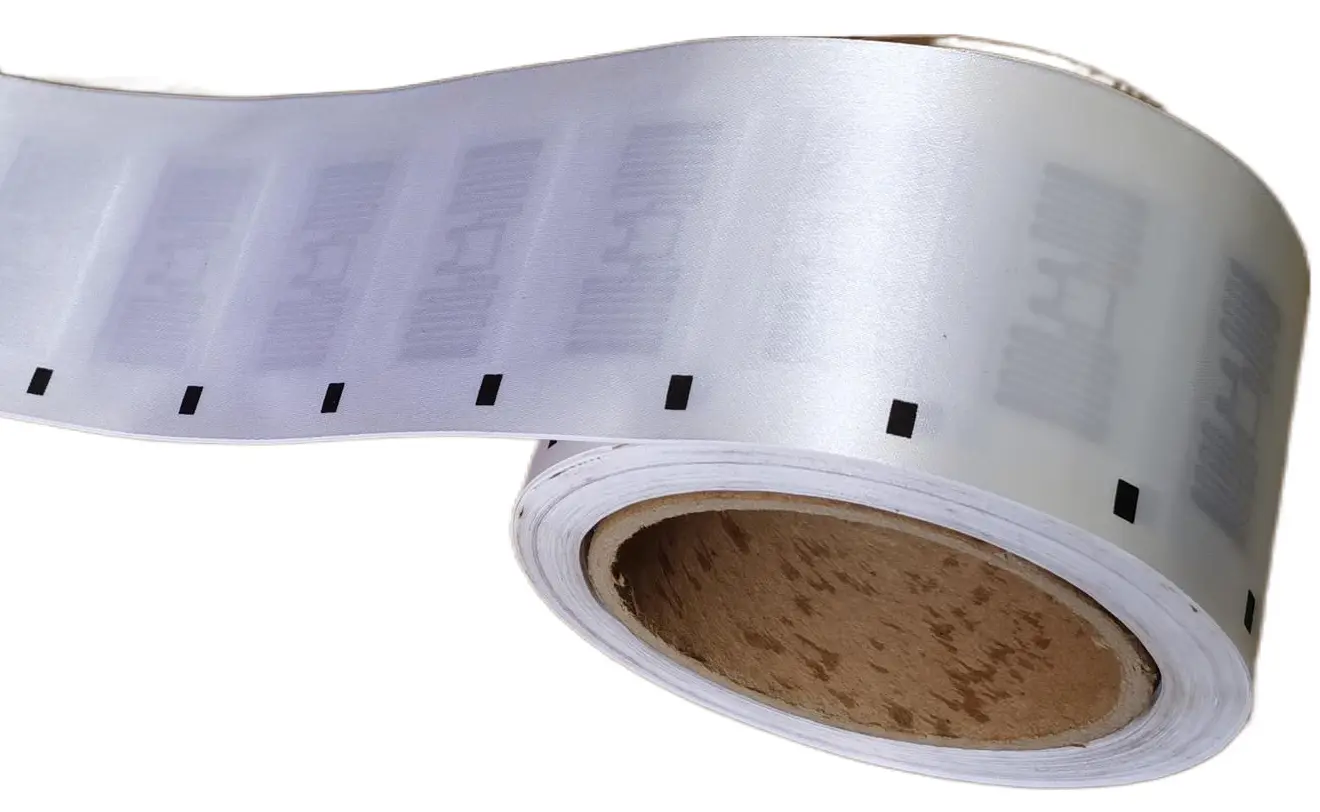

－This equipment is suitable for the detection and encoding of roll-type RFID tags.
－Equipped with the CLS high-speed servo paper feeding system, it enables the rapid detection of labels.
－Optional dual-station RFID coding and reading detection configuration is available, ensuring the accuracy of the data.
－Optional barcode scanner function is available, enabling consistency in barcode printing and EPC data.
－Optional inkjet printing equipment can be equipped to apply inkjet coding or stamping marks to the products.
－Optional barcode printing equipment can be installed, enabling the simultaneous completion of printing, scanning barcodes, writing codes, and verification checks.
