Detecting Speed Max.： | 15000Pcs/H |
| Encode-detecting Max.： | 15000Pcs/H |
| Label width： | 20-100mm |
| Function： | Single piece feeding ,encode,detecting |
| Machine Size： | 2200*786*1421（mm） |
| Power： | 220V 50-60Hz 2KW |
| Weight： | 300Kg |
The above parameters are for reference only. The actual situation should be confirmed with the physical product.

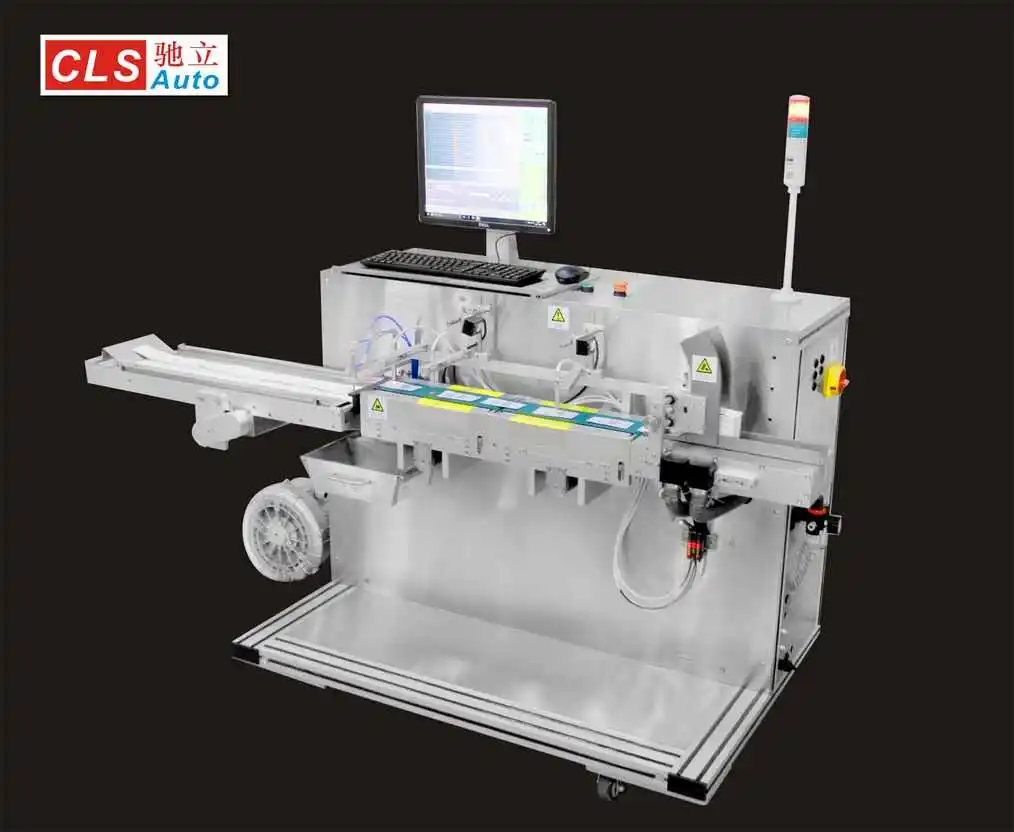

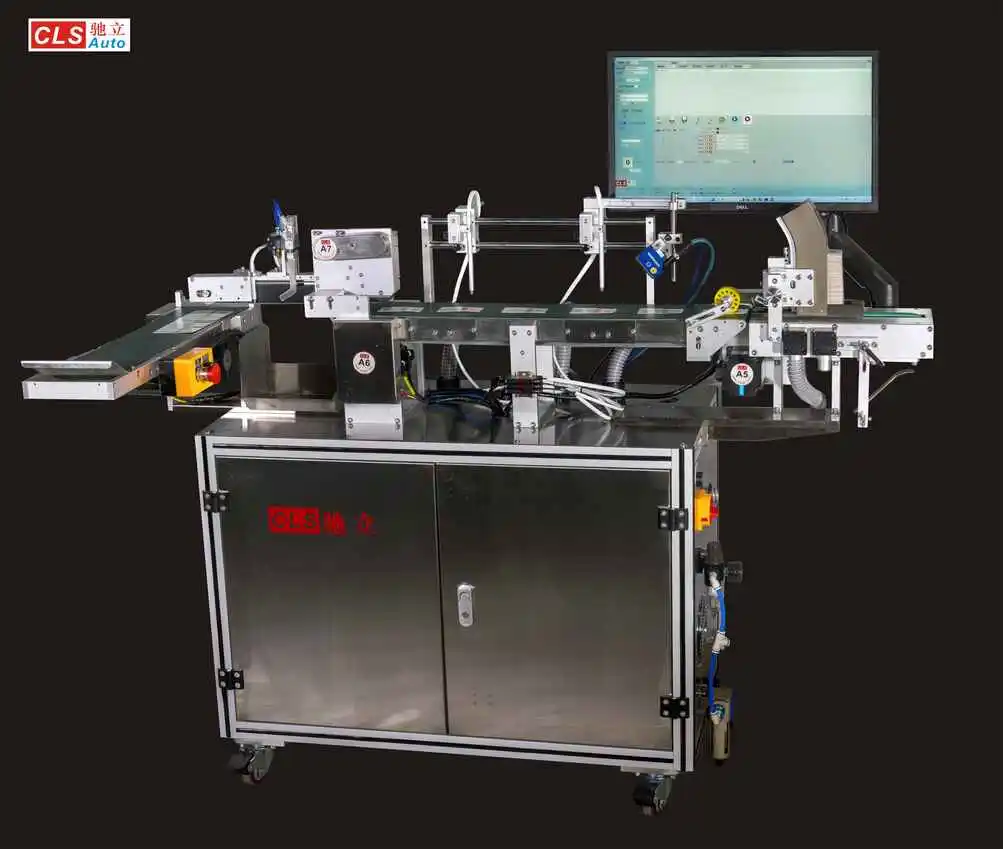

Hang Tag RFID Encomde & Verify Machine

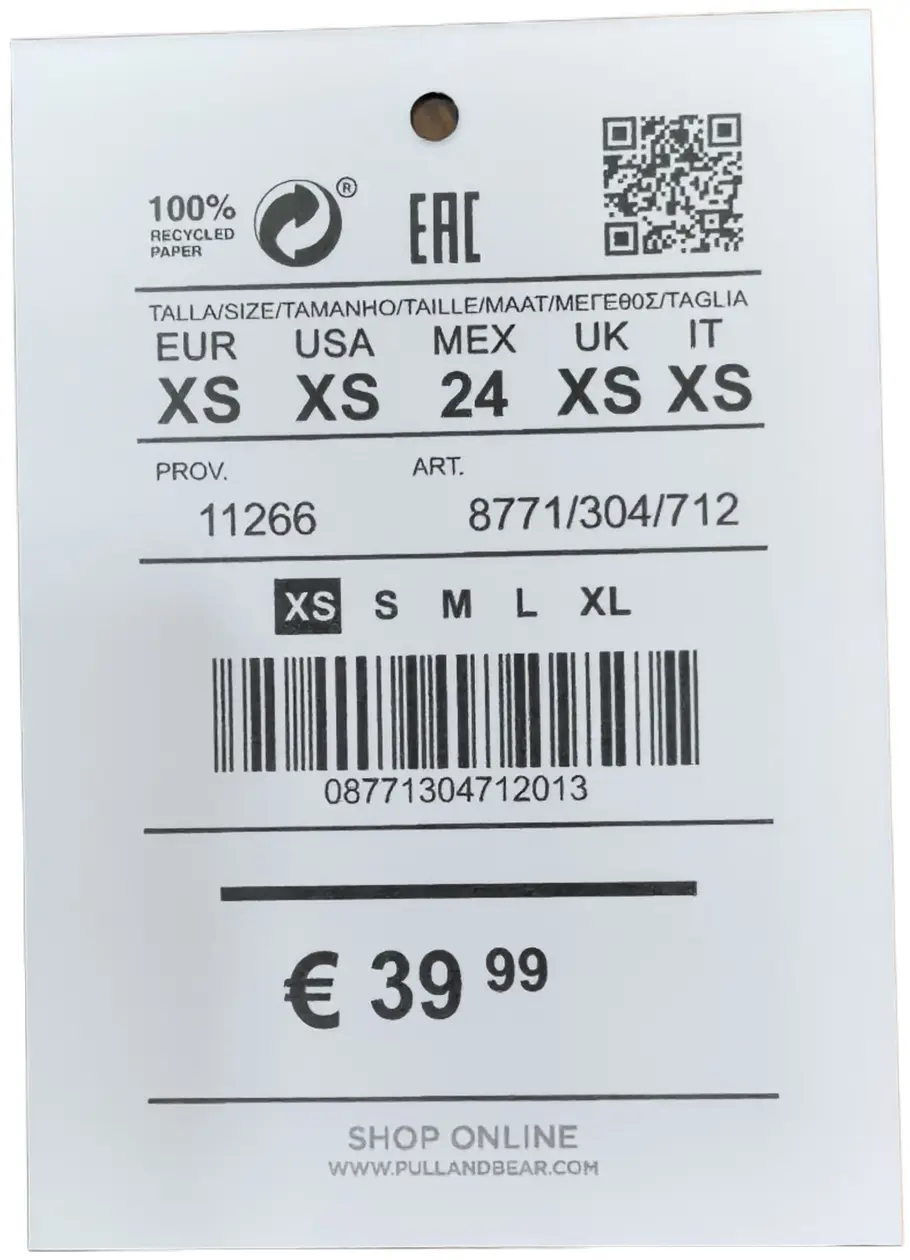

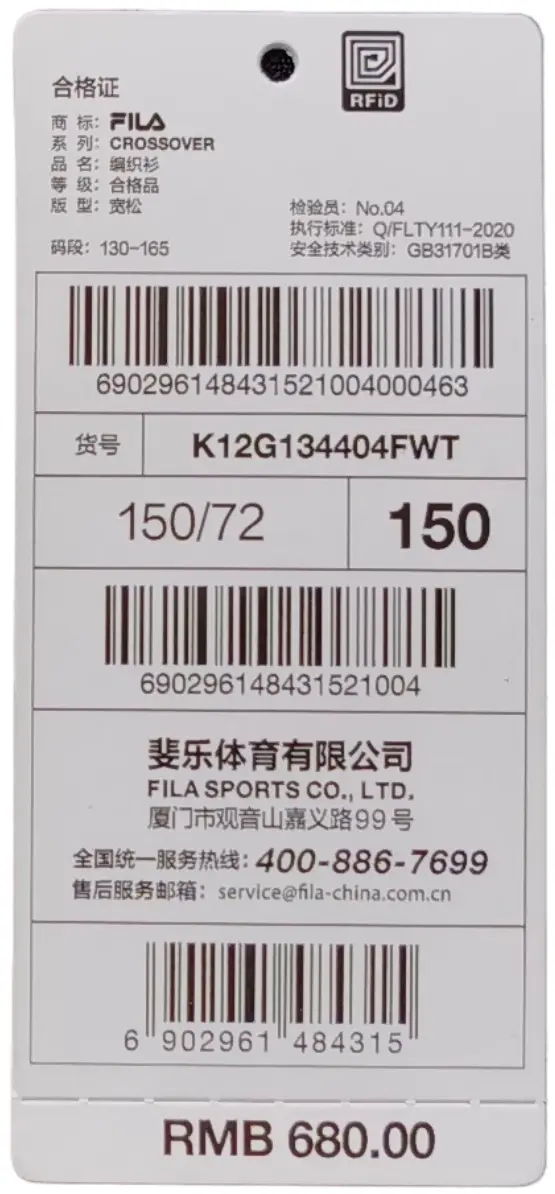

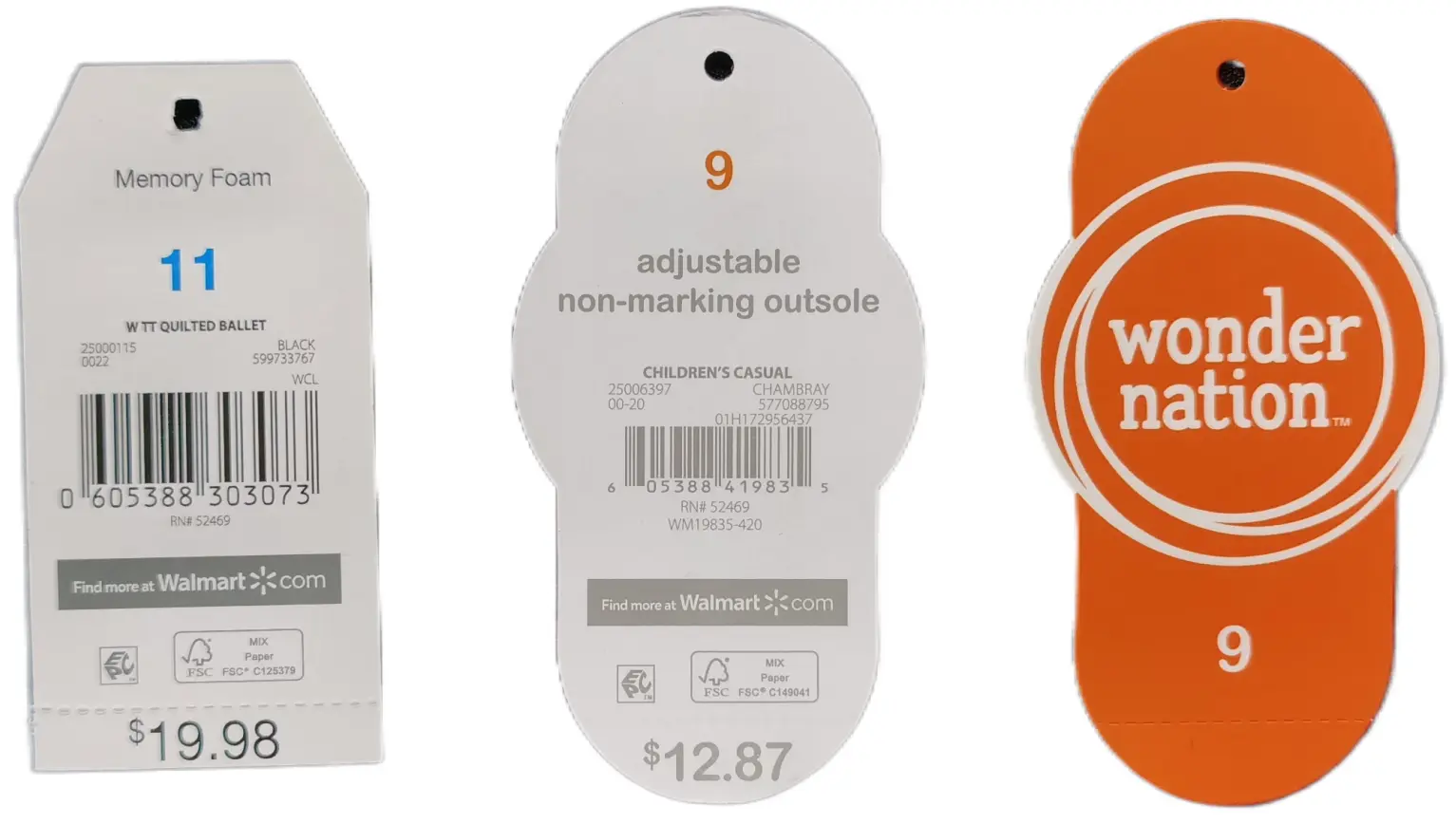

－This equipment is suitable for the automatic material separation, inspection and coding of single labels such as single hanging tags, cards, tickets, and fabric labels.
－The vacuum feeding mechanism improves the feeding efficiency.
－The equipment is equipped with an automatic alarm function for heavy materials during material separation.
－Equipped with a dual-position RFID coding and reading detection configuration to ensure the accuracy of the data;
－Equipped with barcode scanner function, it enables consistent barcode printing and EPC data.

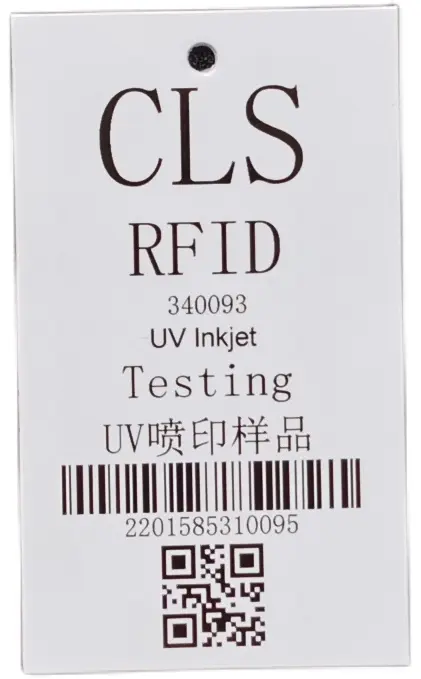

－Optional inkjet printing equipment can be equipped to apply labels or markings to the products.
－It has the functions of receiving materials, stacking, counting, and separating and stacking.
－The equipment is equipped with an automatic rejection and collection function for faulty labels and the corresponding mechanism.
－You can choose to install a barcode printer device, which enables the complete process of printing, scanning, coding, and verification in one go.

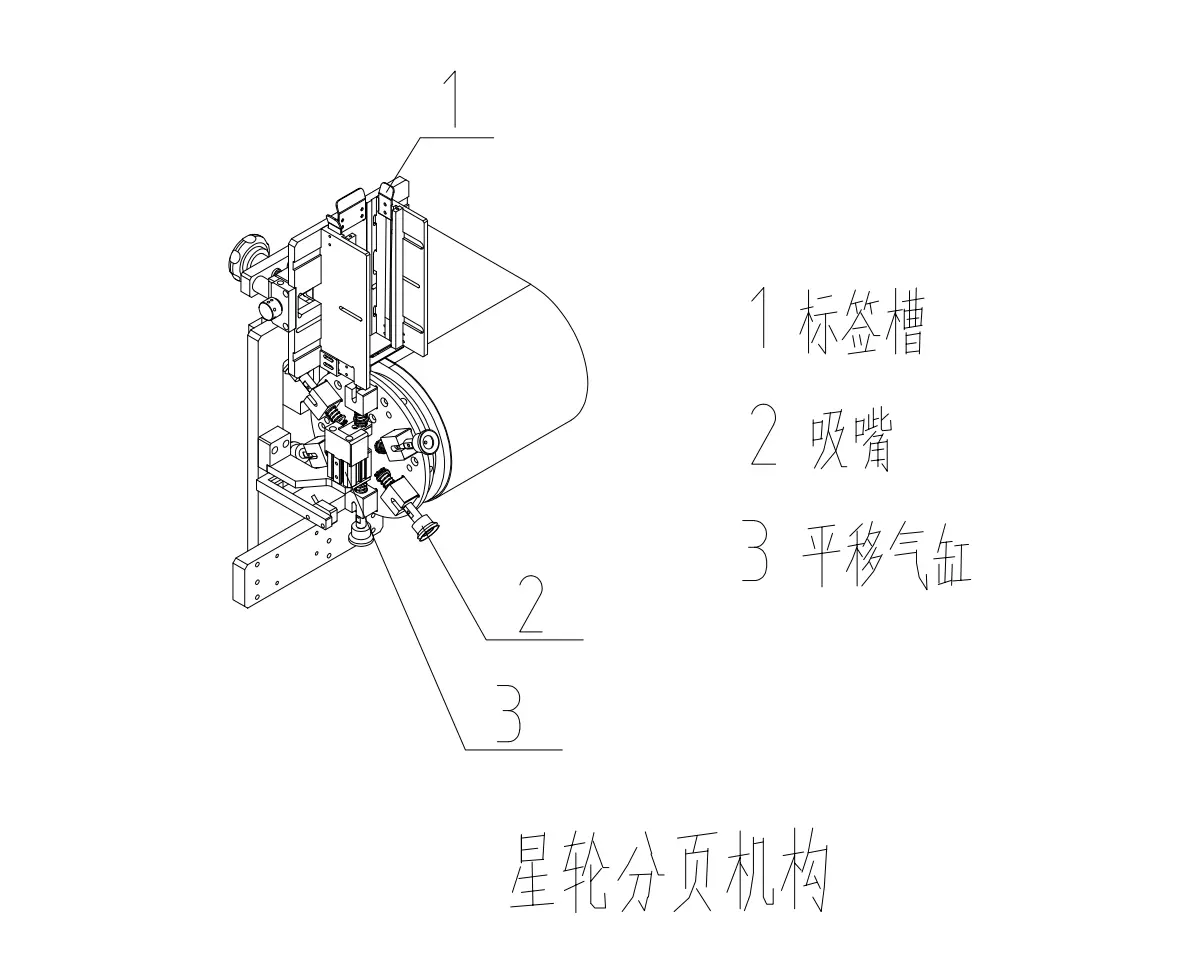

－An optional fabric label star wheel materializing mechanism can be selected, enabling the coding and detection functions for fabric labels.
