Detecting Speed Max.： | 36000Pcs/H |
| Encode-detecting： | 36000Pcs/H |
| Label width： | 20-100mm; |
| Function： | single piece feeding,encode,detecting |
| Machine Size： | 3400*1400*1421（mm） |
| Power： | 380V 50-60Hz 3KW |
| Weight： | 720Kg |
The above parameters are for reference only. The actual situation should be confirmed with the physical product.

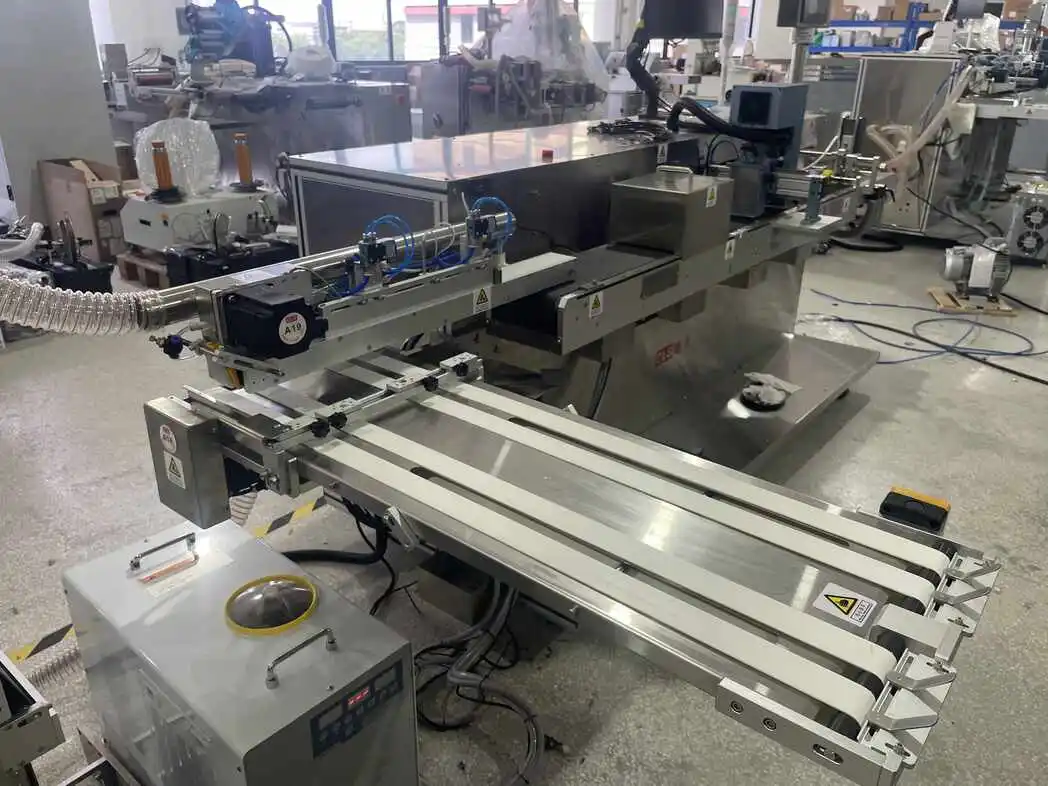

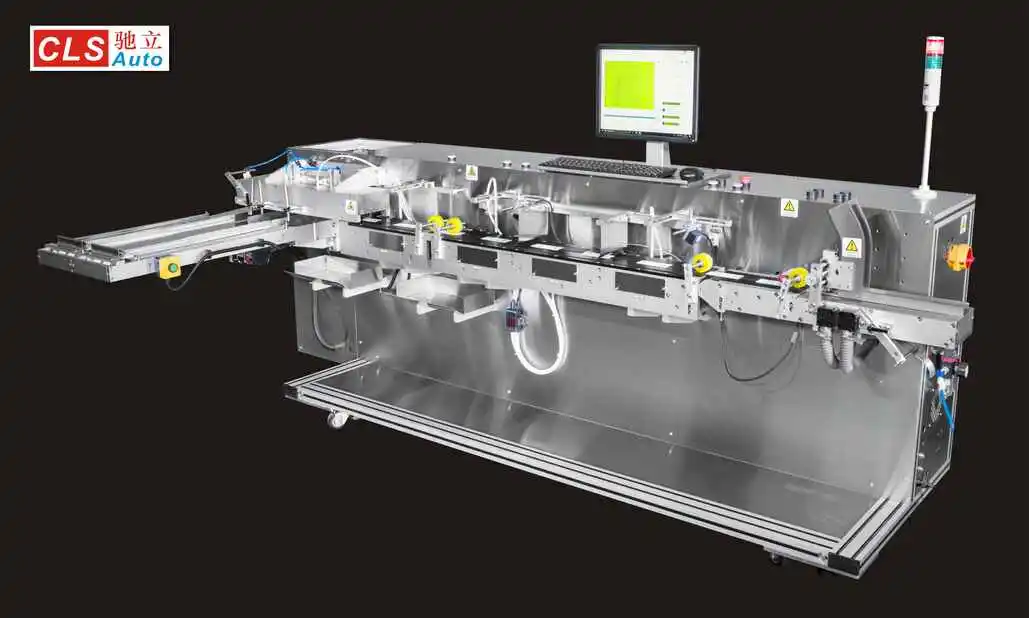

Hang Tag High Speed RFID Encode&Verify Machine
－This equipment is suitable for the automatic material separation, inspection and coding of single labels such as single hanging tags, cards, tickets, and fabric labels.

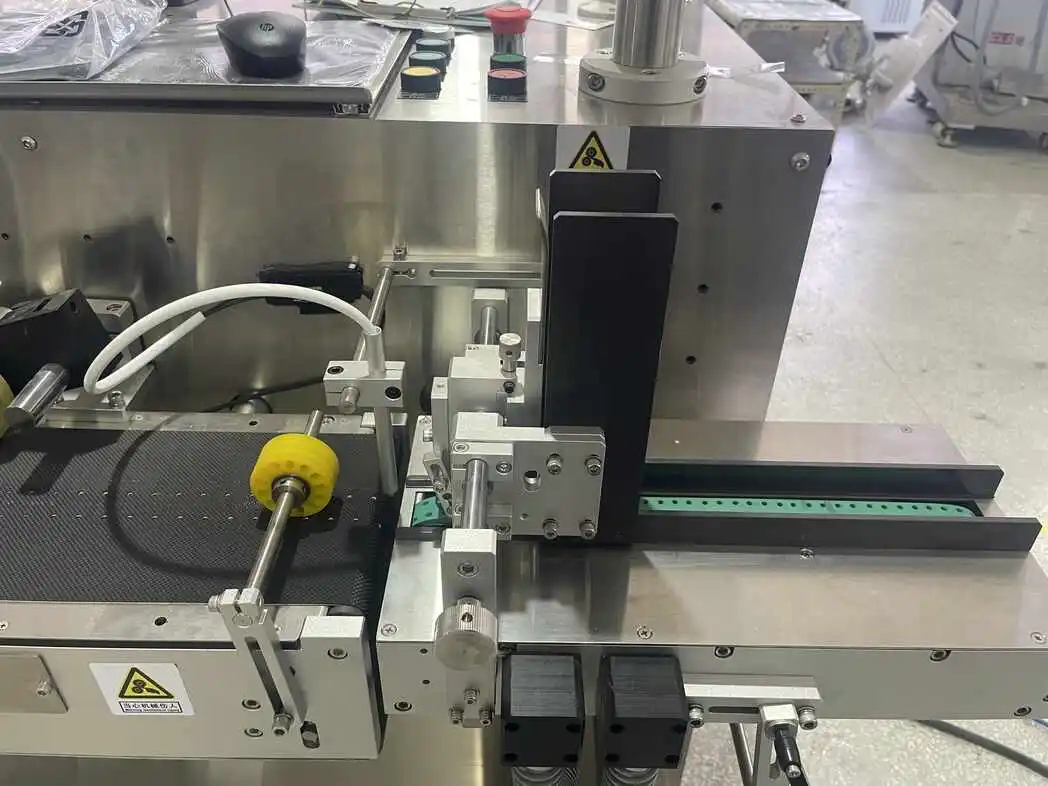

－The vacuum feeding mechanism improves the feeding efficiency.－设备具备分料时重料自动报警功能;

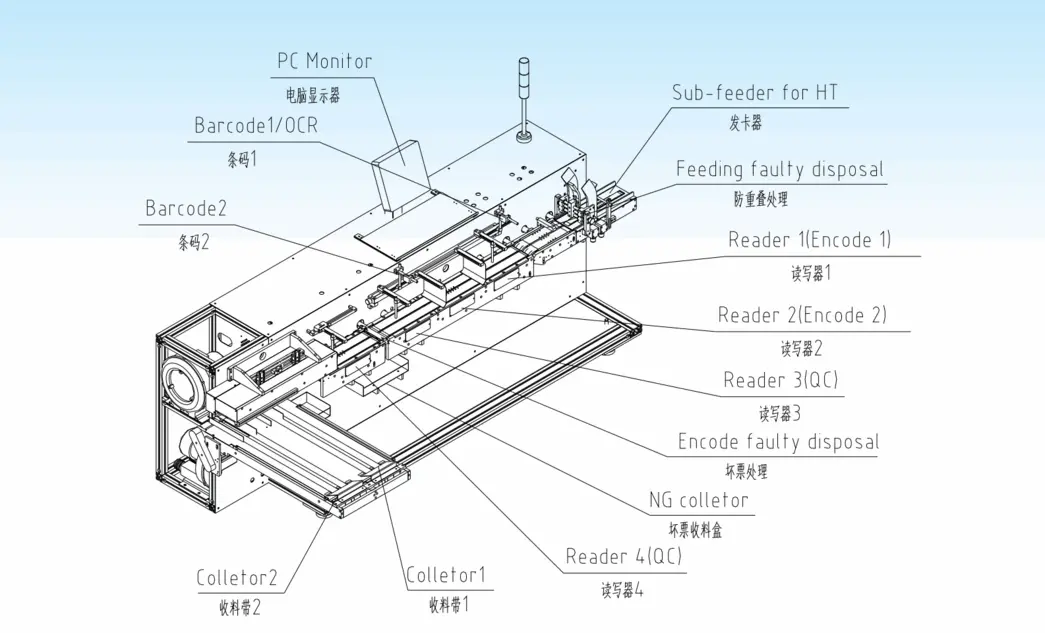

－Equipped with a dual-position RFID coding and reading detection configuration to ensure the accuracy of the data;－Equipped with barcode scanner function, it enables consistent barcode printing and EPC data.
－Optional inkjet printing equipment can be equipped to apply labels or markings to the products.
－It has the functions of receiving materials, stacking, counting, and separating and stacking.
－The equipment is equipped with an automatic rejection and collection function for faulty labels and the corresponding mechanism.
－You can choose to install a barcode printer device, which enables the complete process of printing, scanning, coding, and verification in one go.
－An optional fabric label star wheel materializing mechanism can be selected, enabling the coding and detection functions for fabric labels.
